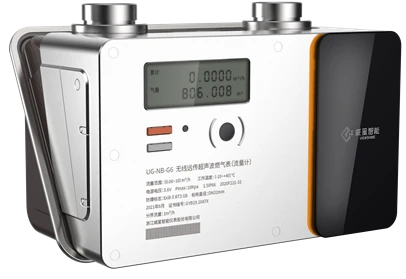

Overview
Main Features
1. Compact size and easy maintenance
2. Gas usage monitoring and dual channel layout
3. Full electronic measurement
4. Various intelligent applications
5. Muitiple communication modes
6. Accuracy remains unchanged for 10 years
7. Real-time temperature & pressurе compensation
8. Normal measurement when abnormal power supply
Technical Parameters
|
Parameters |
Unit |
G6 |
G10 |
|
|
Maximum Flowrate (Qmax) |
m³/h |
10 |
16 |
|
|
Minimum Flowrate (Qmin) |
m³/h |
0.006 |
0.1 |
|
|
Start Flowrate (Qstart) |
m³/h |
0.008 |
0.013 |
|
|
MPE |
Qmin≤Q<0.1 Qmax |
% |
±3.0 |
|
|
0.1 Qmax≤Q≤Qmax |
±1.5 |
|||
|
Maximum Working Pressure (Pmax) |
kPa |
≤50 |
||
|
Maximum Pressure Absorption |
Pa |
≤250 |
≤375 |
|
|
Gas Temperature Range (tg) |
℃ |
-25 to +55 |
||
|
Storage Temperature |
℃ |
-30 to +60 |
||
|
Humidity |
% |
≤95 |
||
|
Battery Information |
V |
Main unit: 7.2 V lithium battery Measurement: 3.6 V lithium battery |
||
|
Thread |
Inch |
G1¼" |
||
|
Connection Centers |
mm |
150 |
||
|
Protection Rating |
Class |
IP65 |
||
|
Overall Dimensions |
mm |
270*137*173 |
||
|
Medium |
/ |
NG |
||
|
Mechanical Environment |
Class |
M1 |
||
|
Electronical Environment |
Class |
E2 |
||
|
Communication |
/ |
GRPS/4G/NB-loT/Customized |
||
|
Case Material |
/ |
Steel |
||
Dimension
Why Choose Us
1. Advanced Production Capability
Our manufacturing facilities are equipped with advanced machinery and automated production lines, enabling high‑precision fabrication and efficient throughput. This ensures consistent quality, rapid turnaround, and the ability to handle both standard and custom orders with ease.
2. Comprehensive Certifications
Our products are fully certified to meet international standards, including MID, ATEX, ISO 9001, ISO 14001, ISO 45001, and IPMS. These accreditations reflect our commitment to quality, safety, environmental responsibility, and robust intellectual property management.
3. Customization & OEM/ODM Services
We support OEM and ODM projects with a flexible approach - adapting designs, features, and packaging to your exact specifications. Whether you need a private label or a fully customized solution, we work closely with you to bring your concept to market.
4. Rigorous Quality Control
From incoming material inspection to in‑process monitoring and final product testing, our quality assurance system operates at every stage. We source premium raw materials and enforce strict checkpoints throughout production to ensure that every meter meets the highest performance and durability standards.
