Overview

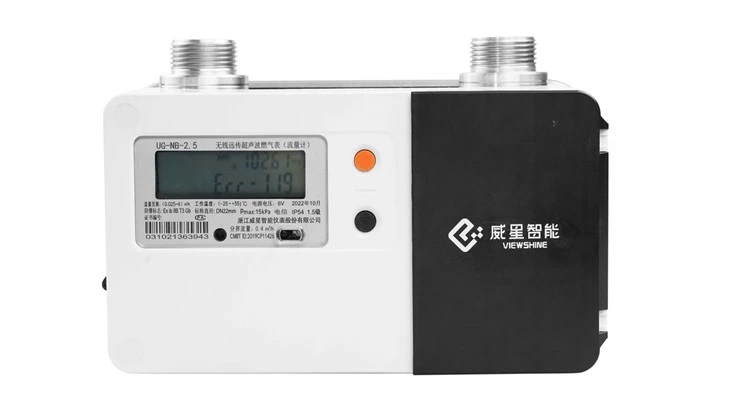

Designed for homes and light commercial use, this G2.5 Ultrasonic Gas Meter covers a flow range of 0.016–6 m³/h and offers a service life of 12 years or more. Real-time temperature and pressure compensation help maintain accuracy as operating conditions change, while the all-electronic, no-moving-parts design keeps precision stable with minimal maintenance.
Built-in IoT connectivity and a safety shut-off valve support remote monitoring and automatic safety responses. Communication options include GPRS, 4G, NB-IoT, and LoRaWAN. With its rugged IP65 steel housing, it suits both smart-home and utility installations.
Main Features
1. Compact size
2. Reliable stability
3. Remote management
4. Accurate measurement
5. Intelligent alarm system
6. Wide measuring range ratio
7. Strong anti-interference ability
8. Multiple communication modes
9. Real-time temperature & pressure compensation
Technical Parameters
|
Parameters |
Unit |
G1.6 |
G2.5 |
G4 |
G4.0+ |
|
|
Maximum Flowrate (Qmax) |
m³/h |
2.5 |
4 |
6 |
6 |
|
|
Minimum Flowrate (Qmin) |
m³/h |
0.016 |
0.025 |
0.040 |
0.016 |
|
|
Start Flowrate (Qstart) |
m³/h |
0.003 |
0.004 |
|||
|
MPE |
Qmin≤Q<0.1Qmax |
% |
±3.0 |
|||
|
0.1Qmax≤Q≤Qmax |
±1.5 |
|||||
|
Maximum Working Pressure (Pmax) |
kPa |
≤50 |
||||
|
Maximum Pressure Absorption |
Pa |
≤200 |
||||
|
Gas Temperature Range (tg) |
℃ |
-25 to +55 |
||||
|
Storage Temperature |
℃ |
-30 to +60 |
||||
|
Humidity |
% |
≤95 |
||||
|
Battery Information |
V |
Measurement: 3.6V lithium battery |
||||
|
Thread |
Inch |
G1¼" |
||||
|
Connection Centers |
mm |
110 |
||||
|
Protection Grade |
Class |
IP65 |
||||
|
Overall Dimensions |
mm |
207*113*142 |
||||
|
Medium |
mm |
NG |
||||
|
Mechanical Environment |
Class |
M1 |
||||
|
Electronical Environment |
Class |
E2 |
||||
|
Communication |
/ |
GPRS/4G/NB-IoT/LoRaWAN |
||||
|
Case Material |
/ |
Steel |
||||
Dimension
Why Choose Us
1. Global Reach, Local Fit
VIEWSHINE delivers ultrasonic gas meters, smart water meters, and IoT platforms to utilities and industrial/commercial users in over 30 countries. We also support OEM and private-label projects - adjusting products for regional codes and brand needs, so entering a new market is easier.
2. Engineering You Can Count On
Each product is built, developed, and tested in-house, and comes with MID, OIML, and CE approvals. We keep batch-to-batch consistency with full traceability. Field data shows our meters work reliably from day one.
3. Support Through Every Stage
From design tweaks and sample sign-off to shipping coordination, we stand with distributors, system integrators, and utilities throughout the process. Your timeline matters - we keep each step on schedule.
4. Clear Pricing, Proven Quality
As an ISO-certified maker, we provide volume-based direct pricing with no hidden costs. Every quote is transparent and competitive, supported by products that have been thoroughly tested and field-proven.
