Overview

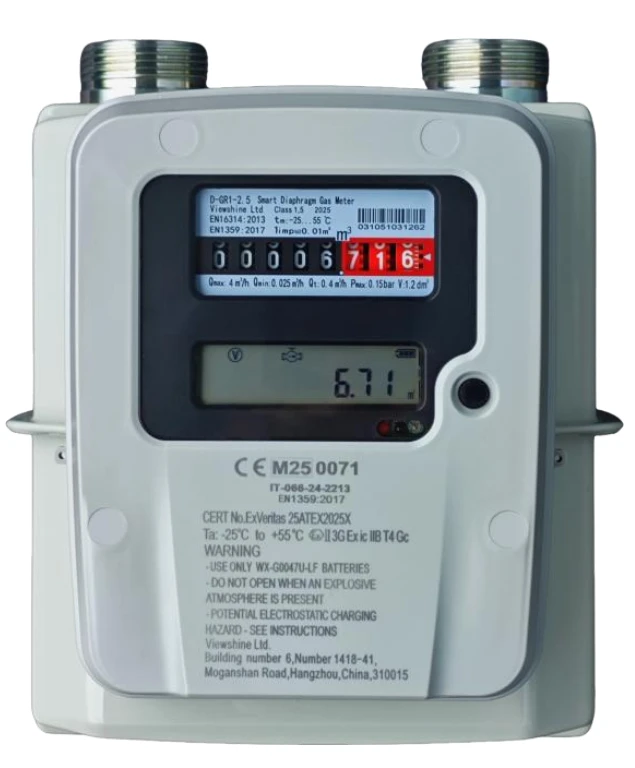

Built to meet modern gas utility demands, our Intelligent Diaphragm Gas Meter integrates signal acquisition, data transmission and temperature & pressure sensing within a single device. It enables remote meter reading, valve control and real-time fault alarms, supporting both pre-payment and post-payment billing models for flexible project rollout.
Available in G1.6, G2.5 and G4 variants, the meter achieves accurate metering with built-in temperature and pressure compensation. Equipped with an IP65-rated steel enclosure and a battery lifespan exceeding 10 years, it supports NB-IoT, 4G, LoRaWAN and NFC communication. Additional capabilities include tiered pricing schemes, remote balance recharge, and automatic alerts for abnormal operating status.
Main Features
· Tiered billing
· Remote recharging
· EN1359 & EN16314
· Remote valve control
· Supporting post payment
· Auto-alarm for abnormality
· Multiple payment modes
· Communication: LTE&GPRS&NFC
Technical Parameters
|
Parameters |
Unit |
G1.6 |
G2.5 |
G4.0 |
|
|
Maximum Flowrate (Qmax) |
m³/h |
2.5 |
4 |
6.0 |
|
|
Minimum Flowrate (Qmin) |
m³/h |
0.016 |
0.025 |
0.040 |
|
|
MPE |
Qmin≤Q<0.1Qmax |
% |
± 3.0 |
||
|
0.1Qmax≤Q≤Qmax |
± 1.5 |
||||
| Maximum Working Pressure Pmax | kPa | 50 | |||
|
Maximum Pressure Absorption |
Pa |
≤250 |
|||
|
Gas Temperature Range (tg) |
℃ |
-25 ~ 55 |
|||
|
Ambient Temperature (tm) |
℃ |
-25 ~ 55 |
|||
|
Humidity |
% |
≤95 |
|||
| Battery Information | V | 3.6 V Lithium battery | |||
| Thread | Inch | G1¼" / Customized | |||
|
Overall Dimension |
/ |
195*170*220 |
|||
|
Protection Rating |
Class |
IP65 |
|||
|
Medium |
/ |
NG / LPG |
|||
|
Lifespan |
year |
≥ 10 |
|||
|
Electronical Environment |
Class |
E2 |
|||
|
Mechanical Environment |
Class |
M1 |
|||
|
Communication |
/ |
LTE/GPRS/NFC |
|||
|
Case Material |
/ |
Steel |
|||
|
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(inch) |
|
110 |
195 |
220 |
170 |
G1½" |
Why Choose Us
1. Market Insight
VIEWSHINE keeps a close eye on market dynamics and evolving client requirements, guiding ultrasonic metering research and development based on these insights. This delivers robust, field-validated solutions adapted to real-world working conditions.
2. Engineering and Quality Assurance
Our R&D and QA teams participate throughout the full product lifecycle. Rigorous testing and standardized workflows guarantee every meter complies with, and often surpasses, global specifications and client performance expectations.
3. Customer Centric Service
We support clients all the way from early inquiries to sustained after-sales service. Fast replies, clear communication and efficient issue resolution build lasting cooperative partnerships.
4. Direct Factory Cost Advantage
As an original equipment manufacturer, we cut out intermediate distributors to reduce client costs. Streamlined production and lean management enable us to supply high-performance meters at competitive rates, with fully open pricing and zero hidden charges.
