Overview

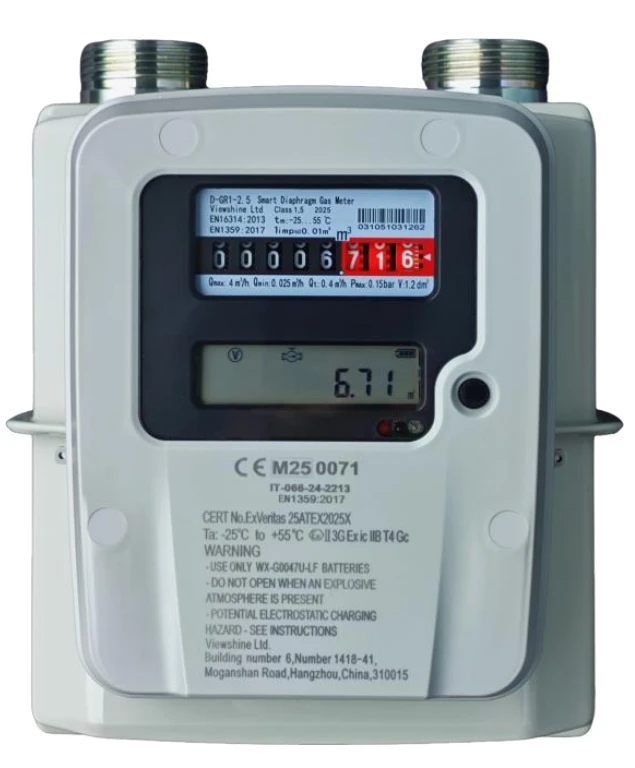

Built for today's gas utilities, the Prepayment Diaphragm Gas Meter combines signal capture, communication, and temperature‑pressure sensing in one unit. It supports remote reading, valve operation, and instant fault detection - enabling both prepaid and post‑paid billing models for flexible deployment.
Offered in G1.6, G2.5, and G4, the meter delivers accurate measurement through integrated temperature and pressure compensation. Its IP65‑rated steel enclosure and 10+‑year battery life are complemented by NB‑IoT, 4G, LoRaWAN, and NFC connectivity - supporting tiered tariffs, remote credit top‑ups, and automatic alerts for abnormal conditions.
Main Features
· Tiered billing
· Remote recharging
· EN1359 & EN16314
· Remote valve control
· Supporting post payment
· Auto-alarm for abnormality
· Multiple payment modes
· Communication: LTE&GPRS&NFC
Technical Parameters
|
Parameters |
Unit |
G1.6 |
G2.5 |
G4.0 |
|
|
Maximum Flowrate (Qmax) |
m³/h |
2.5 |
4 |
6.0 |
|
|
Minimum Flowrate (Qmin) |
m³/h |
0.016 |
0.025 |
0.040 |
|
|
MPE |
Qmin≤Q<0.1Qmax |
% |
± 3.0 |
||
|
0.1Qmax≤Q≤Qmax |
± 1.5 |
||||
| Maximum Working Pressure Pmax | kPa | 50 | |||
|
Maximum Pressure Absorption |
Pa |
≤250 |
|||
|
Gas Temperature Range (tg) |
℃ |
-25 ~ 55 |
|||
|
Ambient Temperature (tm) |
℃ |
-25 ~ 55 |
|||
|
Humidity |
% |
≤95 |
|||
| Battery Information | V | 3.6 V Lithium battery | |||
| Thread | Inch | G1¼" / Customized | |||
|
Overall Dimension |
/ |
195*170*220 |
|||
|
Protection Rating |
Class |
IP65 |
|||
|
Medium |
/ |
NG / LPG |
|||
|
Lifespan |
year |
≥ 10 |
|||
|
Electronical Environment |
Class |
E2 |
|||
|
Mechanical Environment |
Class |
M1 |
|||
|
Communication |
/ |
LTE/GPRS/NFC |
|||
|
Case Material |
/ |
Steel |
|||
|
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(inch) |
|
110 |
195 |
220 |
170 |
G1½" |
