Overview

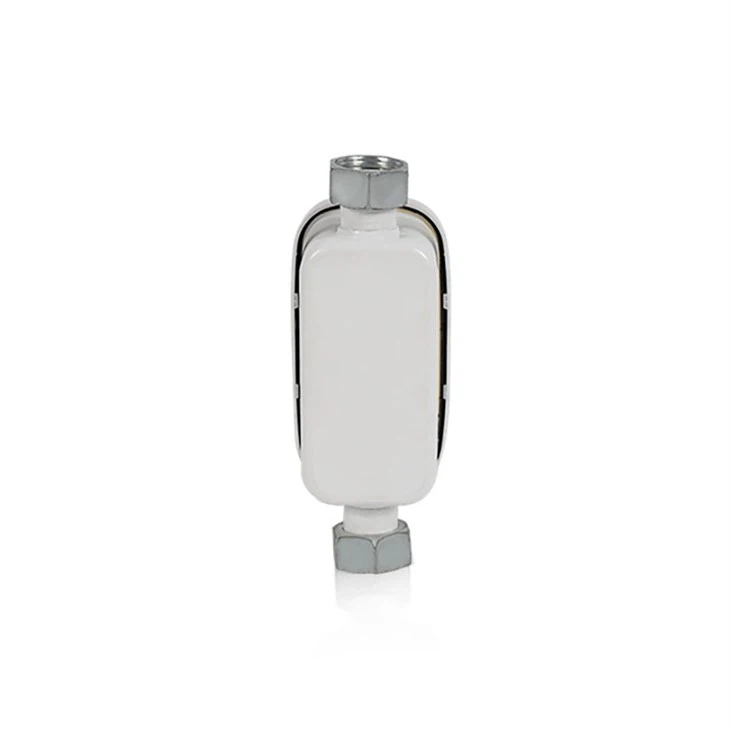

The residential ultrasonic pulse gas meter, developed by Viewshine, is specifically designed for straight-through gas pipelines. Its compact size makes it suitable for installation in narrow spaces or concentrated meter box installations. With a measuring range of 0.016~6m³/h, this gas meter ensures high accuracy through its sensitive ultrasonic measurement and temperature compensation capabilities, providing superior accuracy and stability throughout its service life. The ultrasonic pulse gas meter can also be equipped with a GPRS valve controller, enabling remote data collection and remote valve control of the gas meter over long distances. This provides convenience for gas companies.
Main Features
1. Space-Efficient Compact Design
2. Long-Term Reliability with No Mechanical Wear
3. Wide Measurement Range and High Sensitivity
4. Flexible Installation Options: Vertical or Horizontal
5. Built-in Temperature Compensation Function for Enhanced Accuracy
Main Functions
1. Accurate Metering: Utilizes advanced ultrasonic technology for precise gas measurement.
2. Data Security: Safely stores gas consumption data with reliable security measures.
3. Temperature Compensation: Real-time compensation based on the standard temperature of 20℃ for accurate readings.
4. Real-Time Alarm: LCD display alerts users in case of ultrasonic sensor failure, ensuring prompt attention and troubleshooting. For other alarms, please refer to the provided diagnostic analysis and troubleshooting methods for common faults.
Technical Parameters
|
Type |
U-GR1 |
|||
|
Range and Capacities |
||||
|
Model |
G1.6 |
G2.5 |
G4.0 |
G6.0 |
|
Qmin |
0.016 |
0.025 |
0.04 |
0.06 |
|
Qn |
1.6 |
2.5 |
4.0 |
6.0 |
|
Qmax |
2.5 |
4.0 |
6.0 |
10.0 |
|
Electrical |
||||
|
Battery |
3.6V, Li-battery |
|||
|
Metrological |
||||
|
Accuracy |
±3% in range Qmin≤Q<0.1Qmax |
|||
|
±1.5% in range 0.1Qmax≤Q≤Qmax |
||||
|
Pressure Loss |
﹤200Pa |
|||
|
Mechanical |
||||
|
Environmental Classification |
Indoor |
|||
|
Protection Class |
IP54 |
|||
|
Medium Temperature |
-25~55℃ |
|||
|
Storage Temperature |
-30~60℃ |
|||
|
Pressure Range |
≤10kpa |
|||
|
Body Material |
Steel |
|||
|
Nut Connection |
G3/4"、G1" |
|||
|
Dimension |
199*83.5*81.6mm |
|||

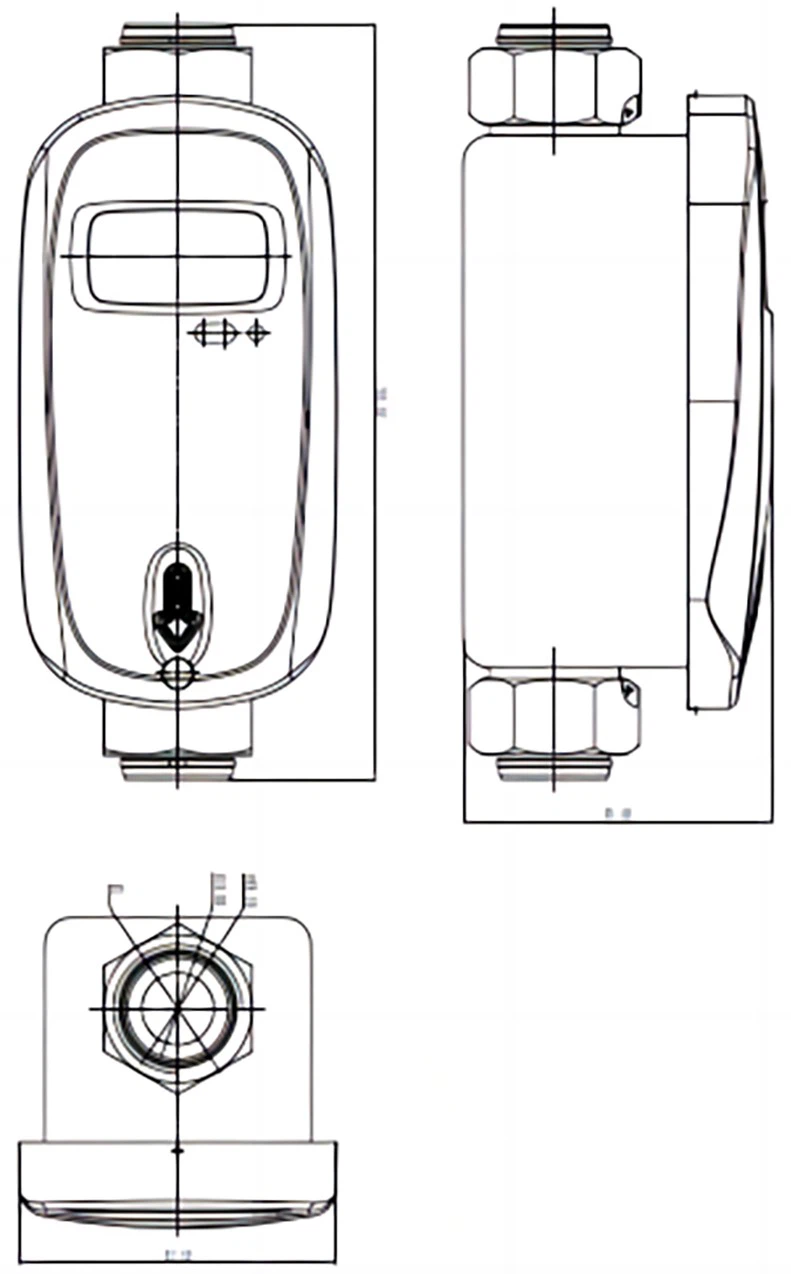

Dimension
Why Choose Us
1. Fully Equipped Production Facilities: Our production facilities are modern and equipped with state-of-the-art machinery. This enables us to manufacture products with high precision and efficiency.
2. Full Certification: We have obtained all the necessary certifications and compliance requirements for our products. Such as: MID Certification, ATEX Certification, Quality, Environmental, Occupational Health and Safety, Intellectual Property management system certification, and so on.
3. OEM and ODM: We offer OEM and ODM options. This flexibility allows us to meet specific customer requirements and deliver tailored solutions.
4. High Quality: We select the best quality raw materials to produce our products, from incoming raw materials to finished products, our quality inspection ensures that each stage meets the highest standards of quality.
