Overview

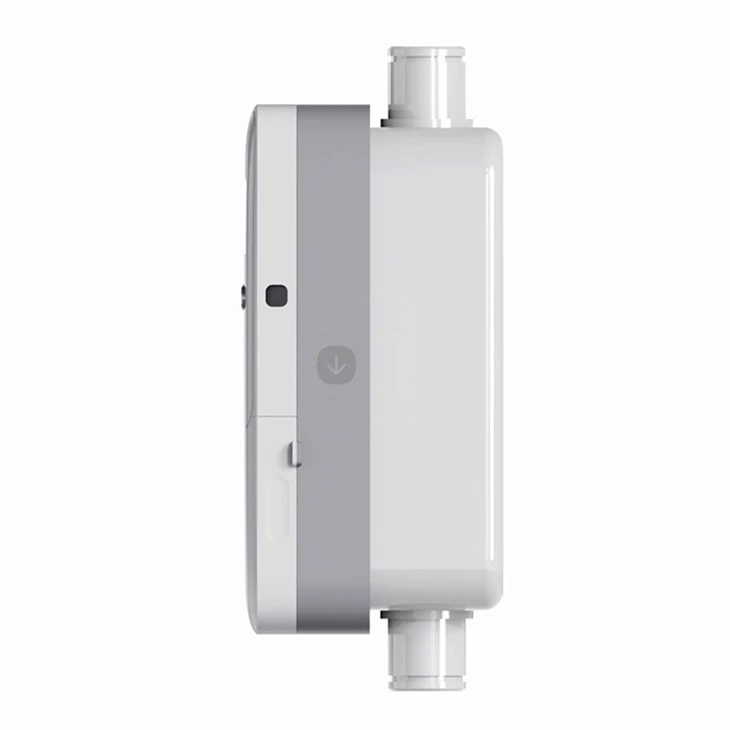

Installation teams appreciate the U‑GR3's compact footprint - fewer tight spots to navigate, fewer return visits. Facility managers gain continuous visibility into gas consumption and system status across a 0.016–10 m³/h range, with no mechanical drift over time. The integrated communication module sends consumption data and alerts straight to monitoring platforms. In case of leaks, pressure fluctuations, or interference, the valve shuts automatically and cloud‑based alerts are raised - no site visit required for confirmation.
Main Features
1. Built-in shut-off valve for automated safety response
2. Meter removal platform for easy maintenance
3. Gas leak monitoring with instant alerts
4. Wide measuring range (0.016–10 m³/h)
5. High accuracy with temperature & pressure compensation
6. Long-term data storage for usage tracking
Technical Parameters
|
Parameters |
Unit |
G1.6 |
G2.5 |
G4.0 |
G6.0 |
||||
|
Maximum Flowrate (Qmax) |
m³/h |
2.5 |
4.0 |
6.0 |
10.0 |
||||
|
Minimum Flowrate (Qmin) |
m³/h |
0.016 |
0.025 |
0.040 |
0.060 |
||||
|
Start Flowrate (Qstart) |
m³/h |
0.003 |
0.004 |
||||||
|
MPE |
Qmin ≤ Q < 0.1 Qmax |
% |
± 3.0 |
||||||
|
0.1 Qmax ≤ Q ≤ Qmax |
± 1.5 |
||||||||
|
Maximum Working Pressure (Pmax) |
kPa |
15 |
|||||||
|
Maximum Pressure Absorption |
Pa |
≤200 |
≤250 |
||||||
|
Gas Temperature Range (tg) |
℃ |
-25 to +55 |
|||||||
|
Ambient Temperature (tm) |
℃ |
-30 to +60 |
|||||||
|
Humidity |
% |
≤95 |
|||||||
|
Battery Information |
V |
Measurement: 3.6 V lithium battery |
|||||||
|
Thread |
Inch |
G3/4", G1" |
|||||||
|
Protection Rating |
Class |
IP65 |
|||||||
|
Overall Dimension |
mm |
252 * 100 * 98 |
|||||||
|
Medium |
mm |
NG |
|||||||
|
Mechanical Environment |
Class |
M1 |
|||||||
|
Electronic Environment |
Class |
E2 |
|||||||
|
Communication |
/ |
GPRS / LoRaWAN / 4G |
|||||||
|
Case Material |
/ |
Steel |
|||||||
Dimension
