Main Features
- Space‑saving design
- Dependable operational stability
- Remote monitoring and control
- High‑precision metering
- Smart alert and alarm system
- Broad turndown ratio
- Excellent immunity to interference
- Flexible communication interfaces
- Dynamic temperature and pressure compensation
- Compliant with EN14236:2018, OIML R137, and WELMEC 7.2
Technical Parameters
|
Parameters |
Unit |
G1.6 |
G2.5 |
G4 |
G4.0+ |
|
|
Maximum Flowrate (Qmax) |
m³/h |
2.5 |
4 |
6 |
6 |
|
|
Minimum Flowrate (Qmin) |
m³/h |
0.016 |
0.025 |
0.040 |
0.016 |
|
|
Start Flowrate (Qstart) |
m³/h |
0.003 |
0.004 |
|||
|
MPE |
Qmin≤Q<0.1Qmax |
% |
±3.0 |
|||
|
0.1Qmax≤Q≤Qmax |
±1.5 |
|||||
|
Maximum Working Pressure (Pmax) |
kPa |
≤50 |
||||
|
Maximum Pressure Absorption |
Pa |
≤200 |
||||
|
Gas Temperature Range (tg) |
℃ |
-25 to +55 |
||||
|
Storage Temperature |
℃ |
-30 to +60 |
||||
|
Humidity |
% |
≤95 |
||||
|
Battery Information |
V |
Measurement:3.6V lithium battery |
||||
|
Thread |
Inch |
G1¼" |
||||
|
Connection Centers |
Mm |
110 |
||||
|
Protection Grade |
/ |
IP65 |
||||
|
Overall Dimensions |
Mm |
207*113*142 |
||||
|
Medium |
/ |
NG |
||||
|
Mechanical Environment |
/ |
M1 |
||||
|
Electronical Environment |
/ |
E2 |
||||
|
Communication |
/ |
GPRS/4G/NB-IoT/LoRaWAN |
||||
|
Case Material |
/ |
Steel |
||||

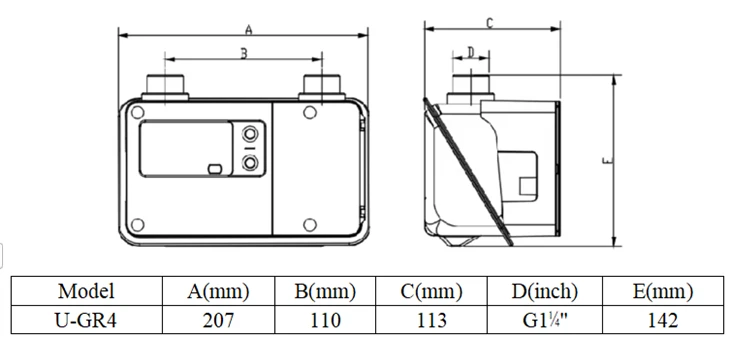

Dimension
