overview

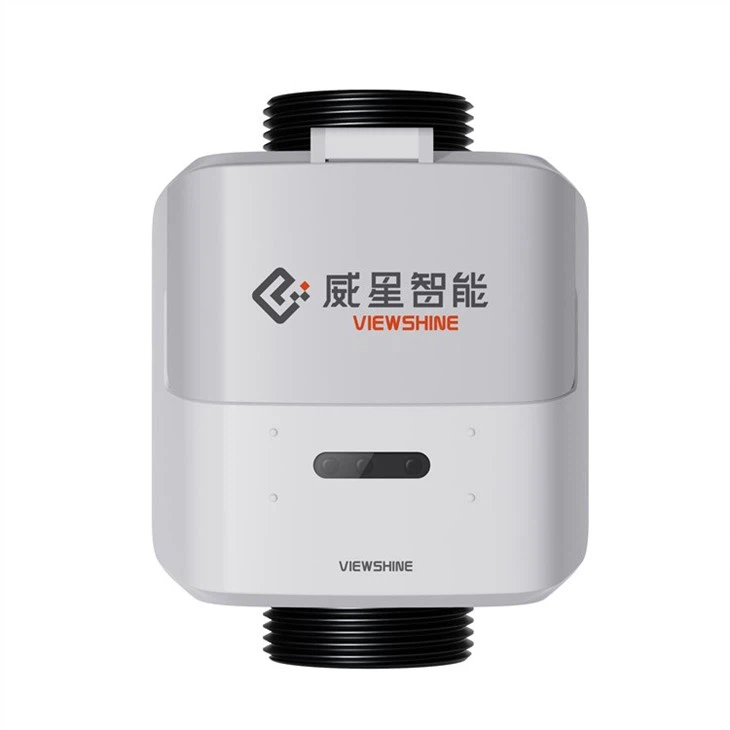

Viewshine's city water meters have significantly improved overall water resource management efficiency by optimizing non revenue water and utility benefits. This water meter adopts innovative design and has a service life of 12 years, surpassing traditional mechanical water meters. Its non moving parts ensure always accurate readings while requiring minimal maintenance. In addition, due to the use of high-quality engineering plastics known for their excellent strength and pressure resistance, its maximum allowable pressure (MAP) is 16 bar.
Key Technical Features
2. U0/D0 compatibility: seamlessly integrated with U0/D0 functionality, ensuring accurate measurement without the need for additional pipelines
3. Ultra low flow detection: capable of detecting flow as low as 1.5L/h
4. Anti impurity and magnetic field: not affected by impurities or magnetic fields in the water supply
5. Extend service life: Designed for a service life exceeding 12 years
6. Simple and flexible installation: able to install vertically and horizontally, suitable for various pipelines
Technical Parameters
|
Type |
U-WR2 |
|||
|
Size |
DN15 |
DN20 |
DN25 | |
|
Range and Capacities |
||||
|
Q3 |
1.6/2.5 m³/h |
2.5/4.0 m³/h |
6.3 m³/h | |
|
Q4 |
3.125 m³/h |
5.0 m³/h |
7.875 m³/h | |
|
Q2 |
8 L/h |
12.8 L/h |
12.6 L/h | |
|
Q1 |
5 L/h |
8 L/h |
7 L/h | |
|
Qstart |
2L/h |
|||
|
Dynamic Range |
R250/R400/R500/R800 |
|||
|
Standard |
ISO4064:2014/ OIML: R49-2013 |
|||
|
Electrical |
||||
|
Battery |
3.6V, Li-battery |
|||
|
EMC |
E1 |
|||
|
Mechanical |
||||
|
Environmental Classification |
Class O |
|||
|
Protection Class |
IP68 |
|||
|
Medium Temperature |
0.1~50℃(T50) |
|||
|
Storage Temperature |
-25~60℃ |
|||
|
MAP |
1.6MPa |
|||
|
Metrological |
||||
|
Accuracy |
±5% in range Q1≤Q＜Q2 ±2% in range Q2≤Q≤Q4 |
|||
|
Head Loss |
0.4bar @ Q3 |
0.25bar @ Q3 | 0.4bar @ Q3 | |
|
Communication |
||||
|
LoRa RF |
LoRaWAN Class A |
|||
|
NB-IoT |
Standard |
|||
|
Pulse Output |
Customized |
|||
| M-Bus/wM-Bus | Standard | |||
Dimension
|
DN |
L(mm) |
Meter Thread |
Pipe Thread |
Extension Pipe Used |
L2(mm) |
H(mm) |
H1(mm) |
|
15 |
110 |
G¾B |
R½ |
None |
82 |
16 |
82.2 |
|
115 |
G¾B |
R½ |
None |
82 |
16 | 82.2 | |
|
130 |
G¾B |
R½ |
None |
82 |
16 | 82.2 | |
|
165 |
G¾B |
R½ |
None |
82 |
16 | 82.2 | |
|
170 |
G¾B |
R½ |
None |
82 |
16 | 82.2 | |
|
20 |
110 |
G1B |
R¾ |
None |
82 |
18.5 |
83.2 |
|
115 |
G1B |
R¾ |
None |
82 |
18.5 | 83.2 | |
|
130 |
G1B |
R¾ |
None |
82 |
18.5 | 83.2 | |
|
190 |
G1B |
R¾ |
None |
82 |
18.5 | 83.2 | |
|
195 |
G1B |
R¾ |
None |
82 |
18.5 | 83.2 | |
| 25 | 110 | G5/4B | R1B | None | 82 | 21.8 | 87.2 |
| 150 | G5/4B | R1B | None | 82 | 21.8 | 87.2 | |
| 200 | G5/4B | R1B | None | 82 | 21.8 | 87.2 | |
| 225 | G5/4B | R1B | None | 82 | 21.8 | 87.2 | |
| 260 | G5/4B | R1B | None | 82 | 21.8 | 87.2 |
Why Choose Us
1.Our factory is equipped with advanced manufacturing equipment and technology, which enables faster, more efficient, and precise production
2. Wide range of certification combinations: Our products have obtained a series of certifications and compliance requirements, including MID certification, ATEX certification, as well as quality management system, environmental standards, occupational health and safety, and intellectual property management system certifications
3. Customized solutions: We provide comprehensive customization services, including OEM and ODM services
4.Quality is the core of our product production. We attach great importance to quality assurance throughout the entire production and sales process.
