Overview

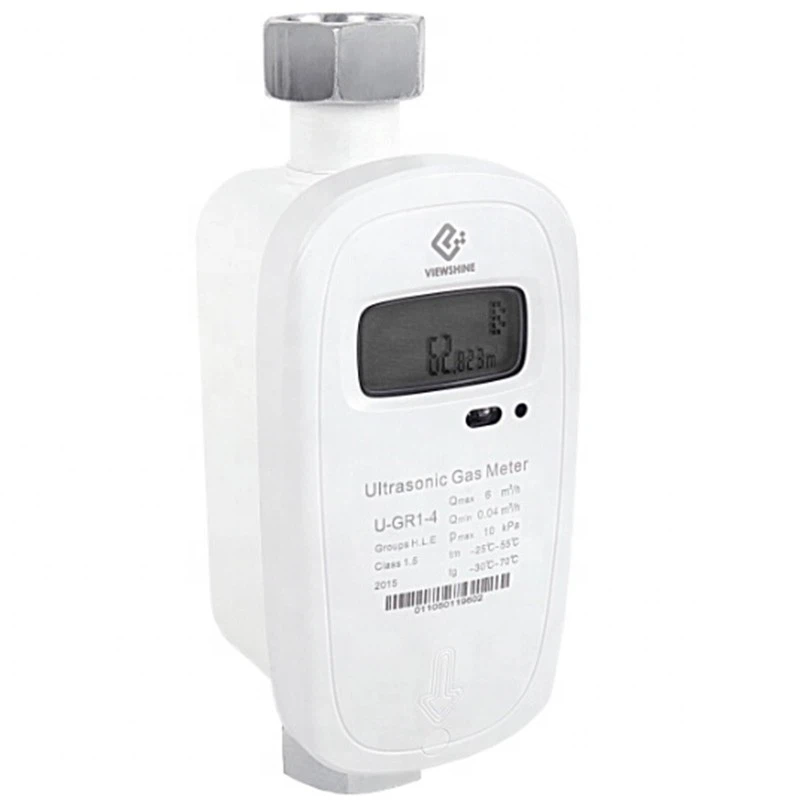

Designed for space-constrained residential installations, this vertical ultrasonic gas meter delivers three key advantages: a space-saving vertical design, a wide measuring range (0.016–10 m³/h), and outstanding accuracy across both low and normal flow rates. This ultrasonic gas meter ensures precise gas consumption monitoring and reliable billing settlement for household and urban residential gas projects.
Main Features
1. Wide measuring range
2. Accurate measurement
3. Supporting data output
4. Lower pressure absorption
5. Data storage safeguarding security
6. Compact size and easy installation
7. Supporting temperature compensation
8. Automatic failure detection and alarms
Technical Parameters
|
Type |
U-GR1 |
|||
|
Range and Capacities |
||||
|
Model |
G1.6 |
G2.5 |
G4.0 |
G6.0 |
|
Qmin |
0.016 |
0.025 |
0.04 |
0.06 |
|
Qn |
1.6 |
2.5 |
4.0 |
6.0 |
|
Qmax |
2.5 |
4.0 |
6.0 |
10.0 |
|
Electrical |
||||
|
Battery |
3.6V, Li-battery |
|||
|
Metrological |
||||
|
Accuracy |
+ 3% in range Qmin≤Q<0.1Qmax |
|||
|
+ 1.5% in range 0.1Qmax≤Q≤Qmax |
||||
|
Pressure Loss |
﹤200Pa |
|||
|
Mechanical |
||||
|
Environmental Classification |
Indoor |
|||
|
Protection Class |
IP54 |
|||
|
Medium Temperature |
-25~55℃ |
|||
|
Storage Temperature |
-30~60℃ |
|||
|
Pressure Range |
≤10kpa |
|||
|
Body Material |
Steel |
|||
|
Nut Connection |
G3/4",G1" |
|||
|
Dimension |
199*84*85mm |
|||
| Communication | Pulse Output | |||
Dimension
