Overview

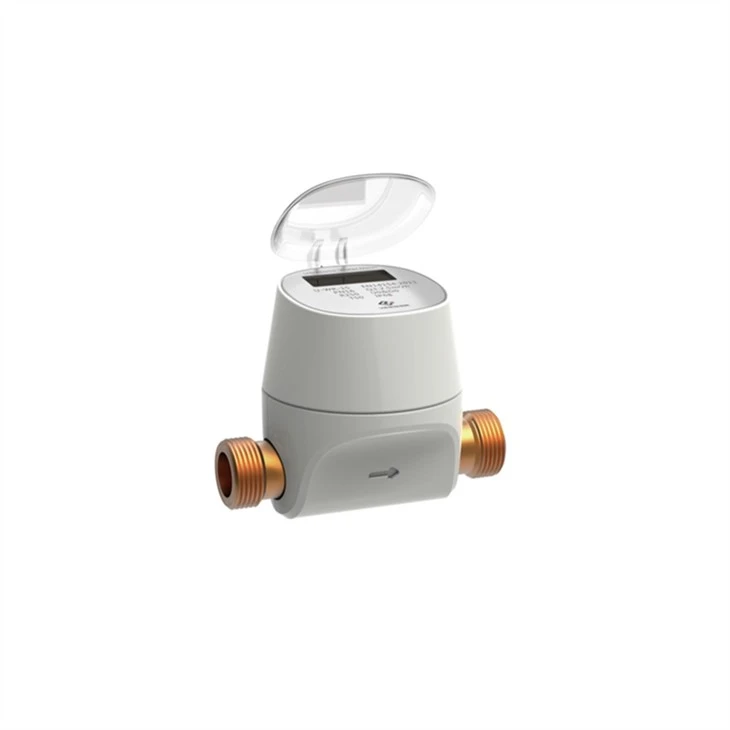

Viewshine Composite Ultrasonic Water Meter uses a solid-state structure with zero moving components, offering stable long-term operation tailored for multi-dwelling residential estates. Designed for a service lifespan beyond 12 years, it provides uninterrupted reliable metering. Its contactless sensing technology preserves measurement accuracy throughout an extensive flow range. Since there are no movable internal parts, mechanical degradation, pressure loss and recurring maintenance tasks are substantially lowered. The unit can capture micro-flows at just 2 L/h, allowing water service providers to uncover invisible tiny leaks promptly and mitigate water losses.
Main Features
1. R400/R250, Wider Dynamic Range
2. U0/D0
3. Lowest Flow Rate: 2L/h
4. Free from Influence of Impurity and Magnetic Field
5. 12+ Years' Design Life Time
6. Vertical/Horizontal Installation
7. LCD Display
8. IP68 protection
Technical Parameters
|
Specifications |
||||
|
Standards |
ISO 4064-1:2017;OIML R49:2013 |
|||
|
Accuracy class |
Class 2 |
|||
|
Nominal diameter |
DN |
mm |
15 |
20 |
|
Permanent flow rate |
Q3 |
m³/h |
2.5 |
4 |
|
Overload flow rate |
Q4 |
m³/h |
3.125 |
5 |
|
Transitional flow rate |
Q2 |
L/h |
10 |
16 |
|
Minimum flow rate |
Q1 |
L/h |
6.25 |
10 |
|
Measurement range |
R |
Q3/Q1 |
R400 |
|
|
Starting flow |
– |
- |
2 L/h |
|
|
Range for R400 |
– |
Q2/Q1 |
1.6 |
|
|
Temperature class (EN and OIML) |
– |
℃ |
T50/T30 |
|
|
Flow profile sensitivity class (EN) |
– |
– |
U0/D0 |
|
|
Counter indication range |
– |
m³ |
99999.999 |
|
|
Scale interval value |
– |
m³ |
0.000001 |
|
|
Maximum permissible error in the range of Q2 ≤ Q ≤ Q4 |
ε |
% |
0. 1℃<=T<=30℃: ±2%; 30℃ |
|
|
Maximum permissible error in the range of Q1 ≤ Q < Q2 |
ε |
% |
±5 |
|
|
Battery |
– |
V |
3.6 |
|
|
Max battery life |
Years |
12 |
||
|
Communication interfaces |
– |
– |
LoRaWAN/NB-IoT/Pulse |
|
|
Water pressure class |
(EN) |
bar |
MAP16 |
|
|
(OIML) |
0.3 to 16 |
|||
|
Maximum pressure loss |
– |
0.63 |
||
|
Installation orientation |
– |
– |
All Positions |
|
|
Reverse flow |
– |
– |
Measurable reverse flow |
|
|
Relative humidity |
– |
% |
≤ 100 |
|
|
IP rating |
– |
– |
IP68 |
|
|
Water meter tube material |
Brass |
|||
Dimension
|
DN |
L(mm) |
Meter Thread |
Pipe Thread |
L1(mm) |
L2(mm) |
H(mm) |
H1(mm) |
|
15 |
110 |
G¾B |
R½ |
202 |
82 |
19.5 |
87 |
|
115 |
G¾B |
R½ |
207 |
82 |
19.5 |
87 |
|
|
165 |
G¾B |
R½ |
257 |
82 |
19.5 |
87 |
|
|
20 |
110 |
G1B |
R¾ |
212 |
82 |
22 |
90 |
|
115 |
G1B |
R¾ |
217 |
82 |
22 |
90 |
|
|
190 |
G1B |
R¾ |
292 |
82 |
22 |
90 |
