Overview

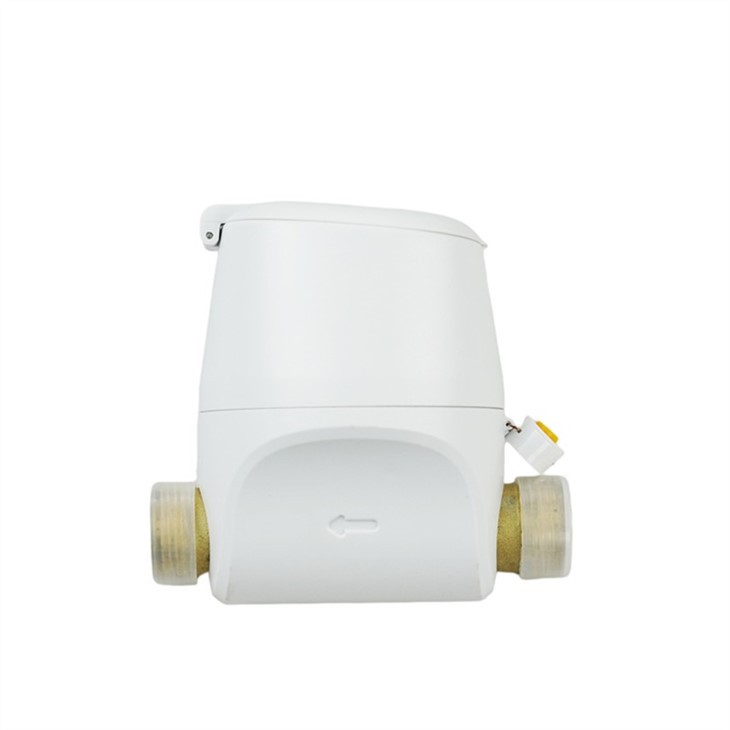

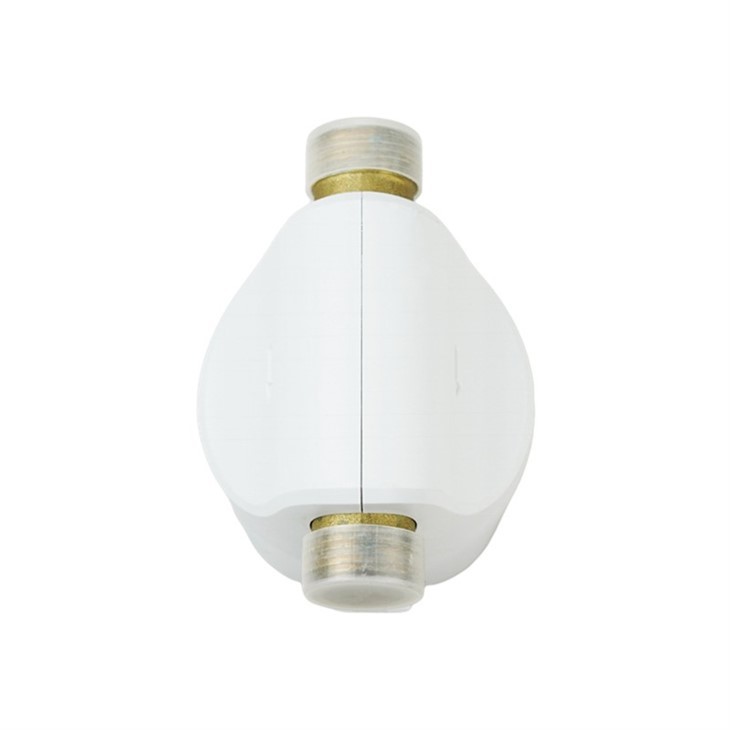

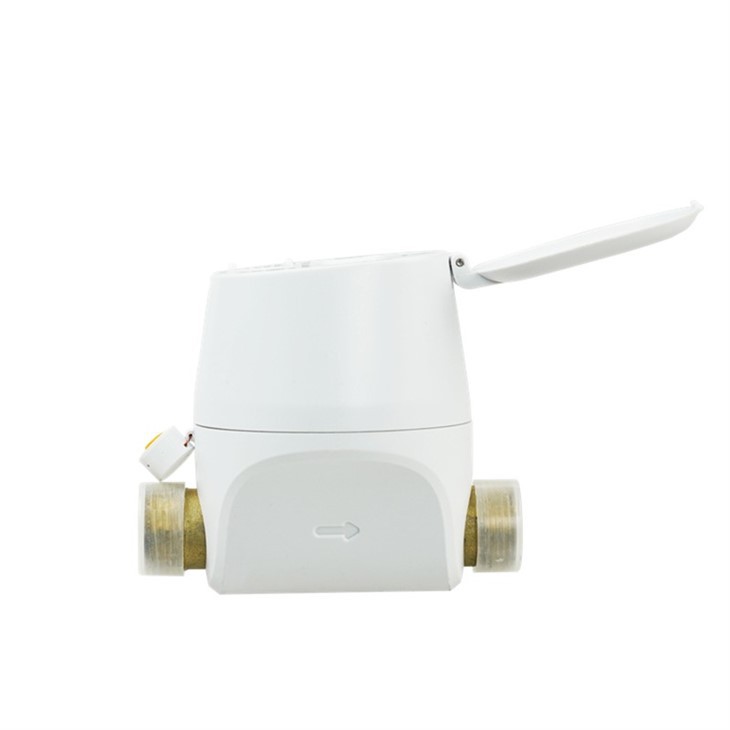

Adopting cutting-edge non-contact ultrasonic detection technology, Viewshine household smart water meter ensures precise flow measurement with broad measuring coverage.
Free of internal moving components, it avoids mechanical abrasion, keeps low pressure loss and maintains steady long-term operation. It can capture extremely low flow down to 2 liters per hour, perfectly fitting domestic water metering scenarios and effectively helping water enterprises cut unaccounted water loss.
Main Features
1. R400/R250, Wider Dynamic Range
2. U0/D0
3. Lowest Flow Rate: 2L/h
4. Free from Influence of Impurity and Magnetic Field
5. 12+ Years' Design Life Time
6. Vertical/Horizontal Installation
7. LCD Display
8. IP68 protection
Technical Parameters
|
Specifications |
||||
|
Standards |
ISO 4064-1:2017;OIML R49:2013 |
|||
|
Accuracy class |
Class 2 |
|||
|
Nominal diameter |
DN |
mm |
15 |
20 |
|
Permanent flow rate |
Q3 |
m³/h |
2.5 |
4 |
|
Overload flow rate |
Q4 |
m³/h |
3.125 |
5 |
|
Transitional flow rate |
Q2 |
L/h |
10 |
16 |
|
Minimum flow rate |
Q1 |
L/h |
6.25 |
10 |
|
Measurement range |
R |
Q3/Q1 |
R400 |
|
|
Starting flow |
– |
- |
2 L/h |
|
|
Range for R400 |
– |
Q2/Q1 |
1.6 |
|
|
Temperature class (EN and OIML) |
– |
℃ |
T50/T30 |
|
|
Flow profile sensitivity class (EN) |
– |
– |
U0/D0 |
|
|
Counter indication range |
– |
m³ |
99999.999 |
|
|
Scale interval value |
– |
m³ |
0.000001 |
|
|
Maximum permissible error in the range of Q2 ≤ Q ≤ Q4 |
ε |
% |
0. 1℃<=T<=30℃: ±2%; 30℃ |
|
|
Maximum permissible error in the range of Q1 ≤ Q < Q2 |
ε |
% |
±5 |
|
|
Battery |
– |
V |
3.6 |
|
|
Max battery life |
Years |
12 |
||
|
Communication interfaces |
– |
– |
LoRaWAN/NB-IoT/Pulse |
|
|
Water pressure class |
(EN) |
bar |
MAP16 |
|
|
(OIML) |
0.3 to 16 |
|||
|
Maximum pressure loss |
– |
0.63 |
||
|
Installation orientation |
– |
– |
All Positions |
|
|
Reverse flow |
– |
– |
Measurable reverse flow |
|
|
Relative humidity |
– |
% |
≤ 100 |
|
|
IP rating |
– |
– |
IP68 |
|
|
Water meter tube material |
Brass |
|||
Dimension
|
DN |
L(mm) |
Meter Thread |
Pipe Thread |
L1(mm) |
L2(mm) |
H(mm) |
H1(mm) |
|
15 |
110 |
G¾B |
R½ |
202 |
82 |
19.5 |
87 |
|
115 |
G¾B |
R½ |
207 |
82 |
19.5 |
87 |
|
|
165 |
G¾B |
R½ |
257 |
82 |
19.5 |
87 |
|
|
20 |
110 |
G1B |
R¾ |
212 |
82 |
22 |
90 |
|
115 |
G1B |
R¾ |
217 |
82 |
22 |
90 |
|
|
190 |
G1B |
R¾ |
292 |
82 |
22 |
90 |
Why Choose Us
1. Fully Equipped Production Facilities: Equipped with sophisticated manufacturing lines, we are capable of large-scale production of ultrasonic water meters. Reliable production strength guarantees steady shipment and punctual delivery for bulk orders and bidding projects.
2. Full Certification: Our products hold full-range authoritative certifications including MID and ATEX. We also pass quality, environment, occupational safety and intellectual property management system assessments.
3. OEM and ODM: As a trusted water meter manufacturer, we offer OEM and ODM options. This flexibility allows us to meet specific customer requirements and deliver tailored solutions.
4. High Quality: Premium raw materials are adopted for production. Rigorous inspections are implemented throughout all production phases to guarantee consistent superior product quality.
