overview

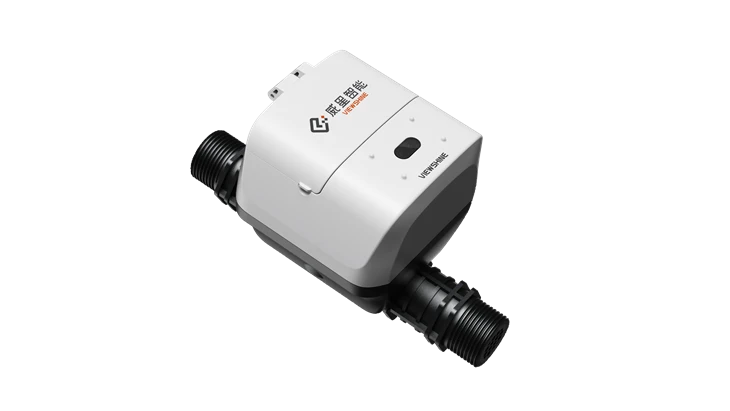

Fitted with durable composite housing and premium IoT communication modules, the U-WR2 ultrasonic water meter utilizes a solid-state structure free of mechanical moving parts. This design avoids abrasion issues and ensures reliable long-term metering accuracy. Integrated wireless transmission and intelligent data processing capabilities are standard, alongside a maximum 12-year operational life. It delivers significant cost savings on procurement and after-sales maintenance for water supply operators, engineering partners and large-volume buyers.
Main Features
1. IP68 Waterproof & Dustproof, U0/D0 Integrated Design
2. WRAS, OIML & MID B+D Certified with Complete Water Quality Test Report
3. Multiple Communication Interfaces & Flexible Installation in Any Position
4. Flow Partition Metering & Statistics with Minimal Pressure Loss
5. Wide Dynamic Range (R800/R500), Leakage Detection & Non-air Measuring
6. Reliable Data Reissue & Retransmission Mechanism
7. No Moving Parts, Designed Service Life ≥12 Years
8. Compact & Robust Structure with Eco-friendly Durable Composite Material
9. Strong Anti-interference, Immune to Media & External Magnetic Fields
Technical Parameters
| Type | U-WR2 | |||
| Size | DN15 | DN20 | DN25 | |
| Range and Capacities | ||||
| Q3 | 1.6/2.5 m³/h | 2.5/4.0 m³/h | 6.3 m³/h | |
| Q4 | 3.125 m³/h | 5.0 m³/h | 7.875 m³/h | |
| Q2 | 8 L/h | 12.8 L/h | 20.2 L/h | |
| Q1 | 5 L/h | 8 L/h | 12.6 L/h | |
| Qstart | 2L/h | |||
| Dynamic Range | R250/R400/R500/R800 | |||
| Standard | ISO4064:2014/ OIML: R49-2013 | |||
| Electrical | ||||
| Battery | 3.6V, Li-battery | |||
| EMC | E1 | |||
| Mechanical | ||||
| Environmental Classification | Class O | |||
| Protection Class | IP68 | |||
| Medium Temperature | 0.1~50℃(T50) | |||
| Storage Temperature | -25~60℃ | |||
| MAP | 1.6MPa | |||
| Metrological | ||||
| Accuracy |
±5% in range Q1≤Q＜Q2 ±2% in range Q2≤Q≤Q4 |
|||
| Head Loss | 0.4bar @ Q3 | 0.25bar @ Q3 | 0.4bar @ Q3 | |
| Communication | ||||
| LoRa RF | LoRaWAN Class A | |||
| NB-IoT | Standard | |||
| Pulse Output | Customized | |||
| M-Bus/wM-Bus | Standard | |||
Dimension
Why Choose Us
1. Manufacturing Capability
Flexible OEM & ODM customization is available for residential water meters. We can adjust communication protocols, interface connectors, outer packaging and product markings to match localized standards and unique project demands.4. Full-Lifecycle Quality AssuranceWe adopt top-tier raw materials and implement strict multi-stage inspections covering incoming parts, semi-finished goods and finished products. The full-process quality supervision guarantees uniform accuracy and stable long-term performance across all production batches.
