Overview

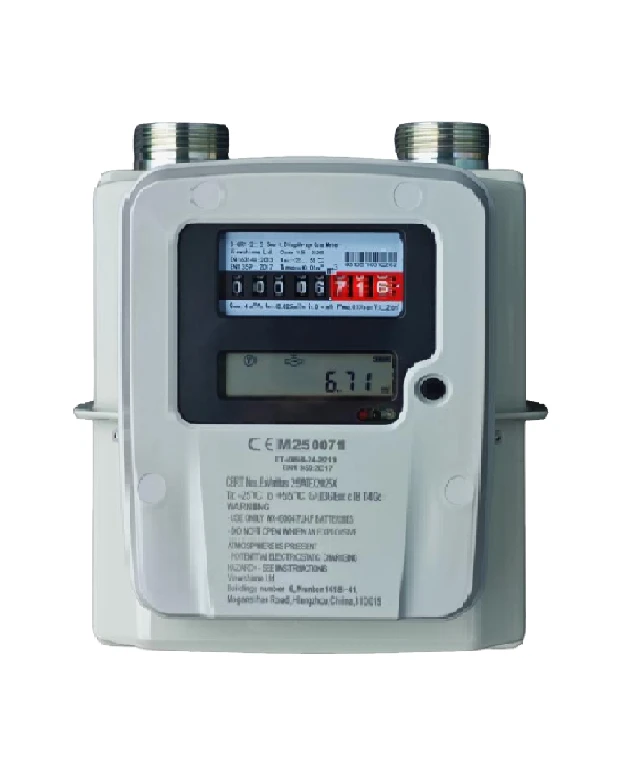

Developed to satisfy the current requirements of gas operators, Viewshine's Remote-Reading Diaphragm Gas Meter consolidates signal capture, data transfer, as well as temperature and pressure detection into one compact unit. It supports remote readout, valve actuation and instant fault notifications, accommodating both prepaid and postpaid billing structures to facilitate flexible project deployment.
Offered in G1.6, G2.5 and G4 specifications, this meter delivers precise measurement via embedded temperature and pressure compensation. Housed within an IP65 steel casing and powered by a battery lasting over 10 years, it features multi-protocol connectivity including NB-IoT, 4G, LoRaWAN and NFC. Other functional highlights cover tiered tariff rules, remote top-up and automated alerts for anomalous working conditions.
Main Features
· Tiered billing
· Remote recharging
· EN1359 & EN16314
· Remote valve control
· Supporting post payment
· Auto-alarm for abnormality
· Multiple payment modes
· Communication: LTE&GPRS&NFC
Technical Parameters
|
Parameters |
Unit |
G1.6 |
G2.5 |
G4.0 |
|
|
Maximum Flowrate (Qmax) |
m³/h |
2.5 |
4 |
6.0 |
|
|
Minimum Flowrate (Qmin) |
m³/h |
0.016 |
0.025 |
0.040 |
|
|
MPE |
Qmin≤Q<0.1Qmax |
% |
± 3.0 |
||
|
0.1Qmax≤Q≤Qmax |
± 1.5 |
||||
| Maximum Working Pressure Pmax | kPa | 50 | |||
|
Maximum Pressure Absorption |
Pa |
≤250 |
|||
|
Gas Temperature Range (tg) |
℃ |
-25 ~ 55 |
|||
|
Ambient Temperature (tm) |
℃ |
-25 ~ 55 |
|||
|
Humidity |
% |
≤95 |
|||
| Battery Information | V | 3.6 V Lithium battery | |||
| Thread | Inch | G1¼" / Customized | |||
|
Overall Dimension |
/ |
195*170*220 |
|||
|
Protection Rating |
Class |
IP65 |
|||
|
Medium |
/ |
NG / LPG |
|||
|
Lifespan |
year |
≥ 10 |
|||
|
Electronical Environment |
Class |
E2 |
|||
|
Mechanical Environment |
Class |
M1 |
|||
|
Communication |
/ |
LTE/GPRS/NFC |
|||
|
Case Material |
/ |
Steel |
|||
|
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(inch) |
|
110 |
195 |
220 |
170 |
G1½" |
