Overview

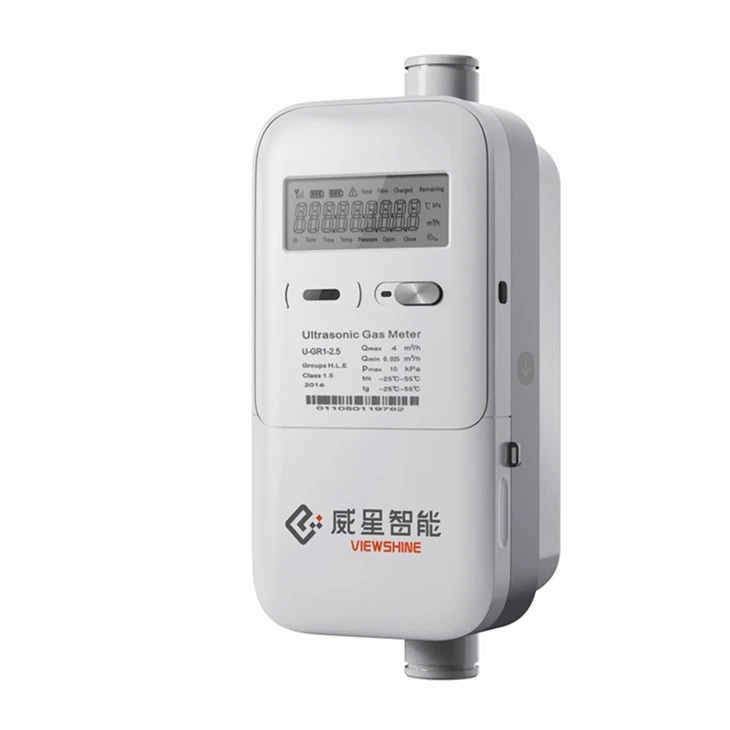

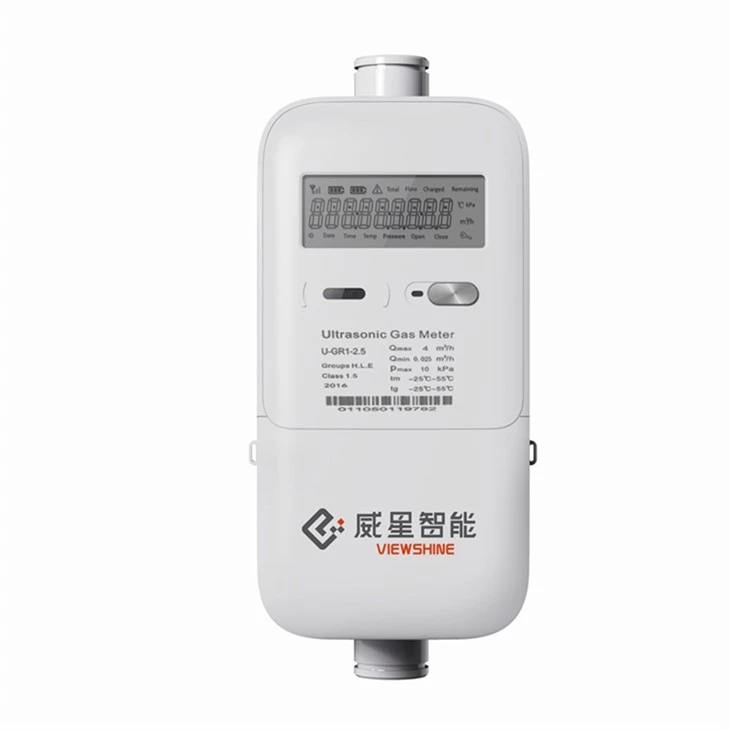

Installation teams favor this ultrasonic gas meter featuring real-time alert capabilities. It cuts down the hassle of working in cramped, hard-to-reach locations and reduces repeat service visits. For facility managers, the device enables continuous tracking of gas consumption and system condition across a measurement range of 0.016–10 m³/h, eliminating concerns over mechanical drift. Its integrated communication module transmits consumption readings and alarm notifications straight to monitoring systems. If gas leaks, pressure fluctuations or signal interference are detected, the meter automatically shuts off the valve and sends cloud-based alerts, removing the need for on-site checks solely for confirmation.
Main Features
1. Built-in shut-off valve for automated safety response
2. Meter removal platform for easy maintenance
3. Gas leak monitoring with instant alerts
4. Wide measuring range (0.016–10 m³/h)
5. High accuracy with temperature & pressure compensation
6. Long-term data storage for usage tracking
Technical Parameters
|
Parameters |
Unit |
G1.6 |
G2.5 |
G4.0 |
G6.0 |
||||
|
Maximum Flowrate (Qmax) |
m³/h |
2.5 |
4.0 |
6.0 |
10.0 |
||||
|
Minimum Flowrate (Qmin) |
m³/h |
0.016 |
0.025 |
0.040 |
0.060 |
||||
|
Start Flowrate (Qstart) |
m³/h |
0.003 |
0.004 |
||||||
|
MPE |
Qmin ≤ Q < 0.1 Qmax |
% |
± 3.0 |
||||||
|
0.1 Qmax ≤ Q ≤ Qmax |
± 1.5 |
||||||||
|
Maximum Working Pressure (Pmax) |
kPa |
15 |
|||||||
|
Maximum Pressure Absorption |
Pa |
≤200 |
≤250 |
||||||
|
Gas Temperature Range (tg) |
℃ |
-25 to +55 |
|||||||
|
Ambient Temperature (tm) |
℃ |
-30 to +60 |
|||||||
|
Humidity |
% |
≤95 |
|||||||
|
Battery Information |
V |
Measurement: 3.6 V lithium battery |
|||||||
|
Thread |
Inch |
G3/4", G1" |
|||||||
|
Protection Rating |
Class |
IP65 |
|||||||
|
Overall Dimension |
mm |
252 * 100 * 98 |
|||||||
|
Medium |
mm |
NG |
|||||||
|
Mechanical Environment |
Class |
M1 |
|||||||
|
Electronic Environment |
Class |
E2 |
|||||||
|
Communication |
/ |
GPRS / LoRaWAN / 4G |
|||||||
|
Case Material |
/ |
Steel |
|||||||
Dimension
