Overview

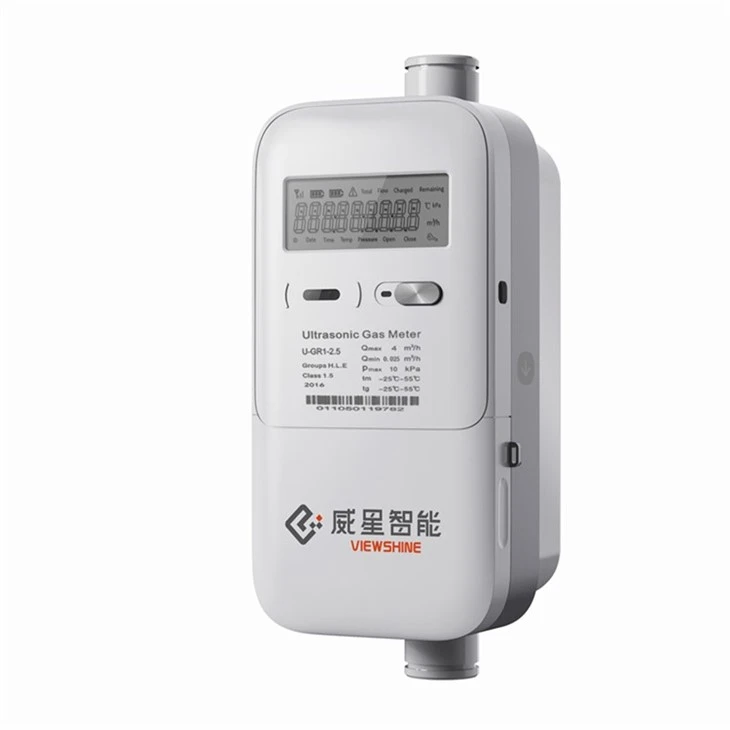

Installation crews prefer this ultrasonic gas meter equipped with real-time alert functions. It eases operations within tight, inaccessible spaces and minimizes repeated maintenance trips. For facility administrators, the meter delivers continuous monitoring of gas usage and system status over a measurement span of 0.016–10 m³/h, without risks from mechanical drift. Its built-in communication module sends consumption data and alarm messages directly to monitoring platforms. Once gas leakage, pressure variation or signal disruption is identified, the meter will close the valve automatically and push cloud alerts, removing the requirement for purely verification-focused site inspections.
Main Features
1. Built-in shut-off valve for automated safety response
2. Meter removal platform for easy maintenance
3. Gas leak monitoring with instant alerts
4. Wide measuring range (0.016–10 m³/h)
5. High accuracy with temperature & pressure compensation
6. Long-term data storage for usage tracking
Technical Parameters
|
Parameters |
Unit |
G1.6 |
G2.5 |
G4.0 |
G6.0 |
||||
|
Maximum Flowrate (Qmax) |
m³/h |
2.5 |
4.0 |
6.0 |
10.0 |
||||
|
Minimum Flowrate (Qmin) |
m³/h |
0.016 |
0.025 |
0.040 |
0.060 |
||||
|
Start Flowrate (Qstart) |
m³/h |
0.003 |
0.004 |
||||||
|
MPE |
Qmin ≤ Q < 0.1 Qmax |
% |
± 3.0 |
||||||
|
0.1 Qmax ≤ Q ≤ Qmax |
± 1.5 |
||||||||
|
Maximum Working Pressure (Pmax) |
kPa |
15 |
|||||||
|
Maximum Pressure Absorption |
Pa |
≤200 |
≤250 |
||||||
|
Gas Temperature Range (tg) |
℃ |
-25 to +55 |
|||||||
|
Ambient Temperature (tm) |
℃ |
-30 to +60 |
|||||||
|
Humidity |
% |
≤95 |
|||||||
|
Battery Information |
V |
Measurement: 3.6 V lithium battery |
|||||||
|
Thread |
Inch |
G3/4", G1" |
|||||||
|
Protection Rating |
Class |
IP65 |
|||||||
|
Overall Dimension |
mm |
252 * 100 * 98 |
|||||||
|
Medium |
mm |
NG |
|||||||
|
Mechanical Environment |
Class |
M1 |
|||||||
|
Electronic Environment |
Class |
E2 |
|||||||
|
Communication |
/ |
GPRS / LoRaWAN / 4G |
|||||||
|
Case Material |
/ |
Steel |
|||||||
Dimension
