Overview

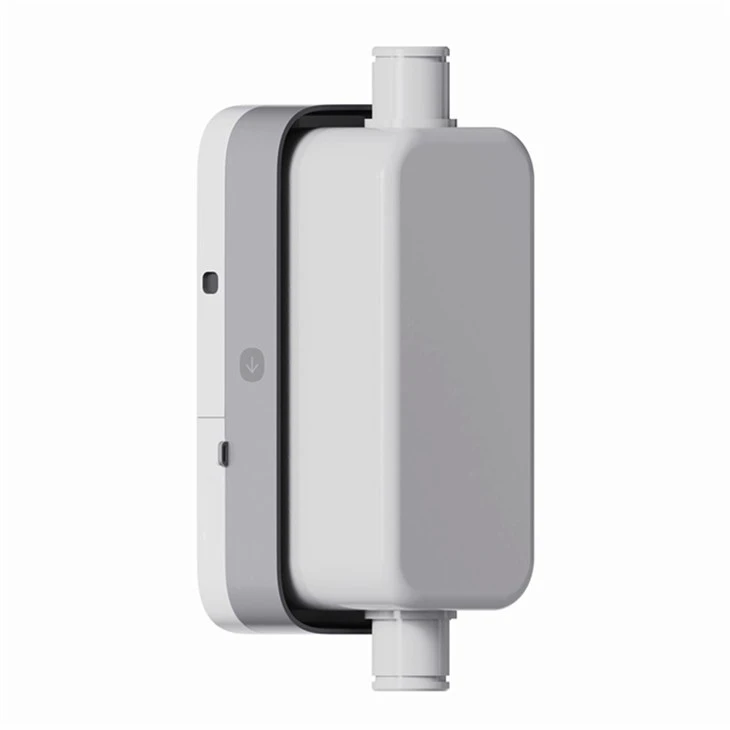

Installation teams favor this Wireless Ultrasonic Gas Meter featuring real-time alert capabilities. It simplifies work in cramped, hard-to-reach locations and cuts down on repeated maintenance visits. For site managers, the device offers continuous tracking of gas consumption and system health across its 0.016–10 m³/h measuring range, free from the issue of mechanical measurement drift. The integrated communication module transmits consumption readings and alarm notifications straight to monitoring systems. When events such as gas leaks, pressure fluctuations or signal interruptions are detected, the meter can trigger automatic valve shutoff and push cloud-based alerts. This eliminates the need for routine on-site checks carried out solely for manual verification.
Main Features
1. Built-in shut-off valve for automated safety response
2. Meter removal platform for easy maintenance
3. Gas leak monitoring with instant alerts
4. Wide measuring range (0.016–10 m³/h)
5. High accuracy with temperature & pressure compensation
6. Long-term data storage for usage tracking
Technical Parameters
|
Parameters |
Unit |
G1.6 |
G2.5 |
G4.0 |
G6.0 |
||||
|
Maximum Flowrate (Qmax) |
m³/h |
2.5 |
4.0 |
6.0 |
10.0 |
||||
|
Minimum Flowrate (Qmin) |
m³/h |
0.016 |
0.025 |
0.040 |
0.060 |
||||
|
Start Flowrate (Qstart) |
m³/h |
0.003 |
0.004 |
||||||
|
MPE |
Qmin ≤ Q < 0.1 Qmax |
% |
± 3.0 |
||||||
|
0.1 Qmax ≤ Q ≤ Qmax |
± 1.5 |
||||||||
|
Maximum Working Pressure (Pmax) |
kPa |
15 |
|||||||
|
Maximum Pressure Absorption |
Pa |
≤200 |
≤250 |
||||||
|
Gas Temperature Range (tg) |
℃ |
-25 to +55 |
|||||||
|
Ambient Temperature (tm) |
℃ |
-30 to +60 |
|||||||
|
Humidity |
% |
≤95 |
|||||||
|
Battery Information |
V |
Measurement: 3.6 V lithium battery |
|||||||
|
Thread |
Inch |
G3/4", G1" |
|||||||
|
Protection Rating |
Class |
IP65 |
|||||||
|
Overall Dimension |
mm |
252 * 100 * 98 |
|||||||
|
Medium |
mm |
NG |
|||||||
|
Mechanical Environment |
Class |
M1 |
|||||||
|
Electronic Environment |
Class |
E2 |
|||||||
|
Communication |
/ |
GPRS / LoRaWAN / 4G |
|||||||
|
Case Material |
/ |
Steel |
|||||||
Dimension
Why Choose Us
1. Global Market Reach
We provide solid project support covering Europe, the Middle East, Southeast Asia and more. VIEWSHINE supplies ultrasonic gas meters, smart water meters and IoT platforms for utilities, industrial and commercial clients globally. Our OEM and custom solutions meet local regulations and project-specific needs to fit your target market.
2. Inherent Product Dependability
Quality is integrated into every meter during production instead of only final testing. Strict test procedures and end-to-end traceability are implemented from design to shipment. Our certified meters deliver stable performance verified by real field operation, which is our permanent quality standard.
3. Adaptive Full Lifecycle Services
We function as your extended partner beyond a regular supplier. We offer fast sample delivery, logistics coordination and continuous technical support with flexible response. Following your project timeline, we ensure smooth progress from pre-sales enquiry to post-installation service.
4. Transparent Direct Manufacturer Pricing
Our premium metering solutions come with zero hidden fees. As an ISO-certified factory, we use simple volume-tiered pricing. No middlemen or extra charges. You get competitive quotations with stable quality, where value and costs are fully open.
