Overview

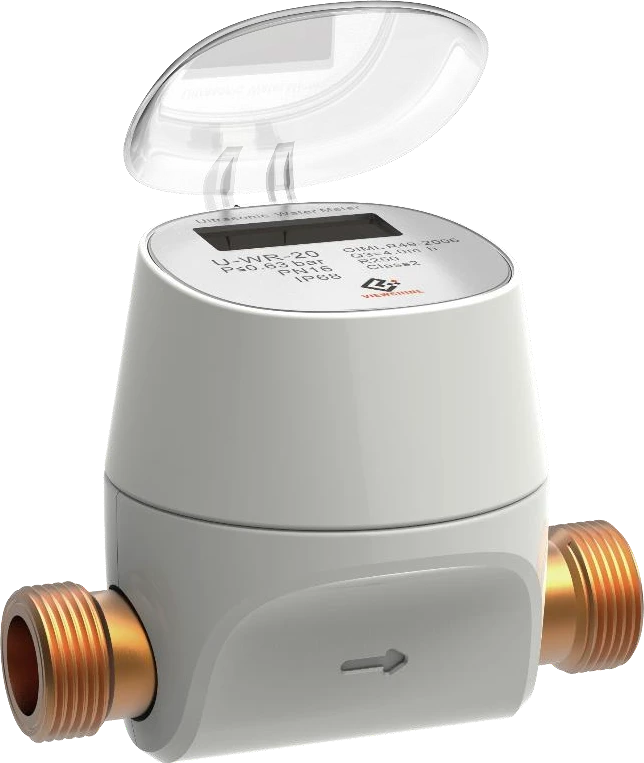

Designed for apartment buildings and shared residential complexes, this Viewshine Smart Water Meter for Apartments offers dependable performance throughout its 12+ year service life. Its ultrasonic measurement principle maintains accuracy as flow rates change, and because there are no mechanical parts to wear out, pressure loss and maintenance needs stay low. With the ability to sense flows down to 2 L/h, it gives utilities an early warning for minor leaks, helping reduce overall water loss.
Main Features
1. R400/R250, Wider Dynamic Range
2. U0/D0
3. Lowest Flow Rate: 2L/h
4. Free from Influence of Impurity and Magnetic Field
5. 12+ Years' Design Life Time
6. Vertical/Horizontal Installation
7. LCD Display
8. IP68 protection
Technical Parameters
|
Specifications |
||||
|
Standards |
ISO 4064-1:2017;OIML R49:2013 |
|||
|
Accuracy class |
Class 2 |
|||
|
Nominal diameter |
DN |
mm |
15 |
20 |
|
Permanent flow rate |
Q3 |
m³/h |
2.5 |
4 |
|
Overload flow rate |
Q4 |
m³/h |
3.125 |
5 |
|
Transitional flow rate |
Q2 |
L/h |
10 |
16 |
|
Minimum flow rate |
Q1 |
L/h |
6.25 |
10 |
|
Measurement range |
R |
Q3/Q1 |
R400 |
|
|
Starting flow |
– |
- |
2 L/h |
|
|
Range for R400 |
– |
Q2/Q1 |
1.6 |
|
|
Temperature class (EN and OIML) |
– |
℃ |
T50/T30 |
|
|
Flow profile sensitivity class (EN) |
– |
– |
U0/D0 |
|
|
Counter indication range |
– |
m³ |
99999.999 |
|
|
Scale interval value |
– |
m³ |
0.000001 |
|
|
Maximum permissible error in the range of Q2 ≤ Q ≤ Q4 |
ε |
% |
0. 1℃<=T<=30℃: ±2%; 30℃ |
|
|
Maximum permissible error in the range of Q1 ≤ Q < Q2 |
ε |
% |
±5 |
|
|
Battery |
– |
V |
3.6 |
|
|
Max battery life |
Years |
12 |
||
|
Communication interfaces |
– |
– |
LoRaWAN/NB-IoT/Pulse |
|
|
Water pressure class |
(EN) |
bar |
MAP16 |
|
|
(OIML) |
0.3 to 16 |
|||
|
Maximum pressure loss |
– |
0.63 |
||
|
Installation orientation |
– |
– |
All Positions |
|
|
Reverse flow |
– |
– |
Measurable reverse flow |
|
|
Relative humidity |
– |
% |
≤ 100 |
|
|
IP rating |
– |
– |
IP68 |
|
|
Water meter tube material |
Brass |
|||
Dimension
|
DN |
L(mm) |
Meter Thread |
Pipe Thread |
L1(mm) |
L2(mm) |
H(mm) |
H1(mm) |
|
15 |
110 |
G¾B |
R½ |
202 |
82 |
19.5 |
87 |
|
115 |
G¾B |
R½ |
207 |
82 |
19.5 |
87 |
|
|
165 |
G¾B |
R½ |
257 |
82 |
19.5 |
87 |
|
|
20 |
110 |
G1B |
R¾ |
212 |
82 |
22 |
90 |
|
115 |
G1B |
R¾ |
217 |
82 |
22 |
90 |
|
|
190 |
G1B |
R¾ |
292 |
82 |
22 |
90 |
