Name: China Commercial Gas Meter With Dual-Channel Manufacturers Suppliers Factory - Viewshine Metering
Brand: Viewshine
SKU: 318577257

Overview

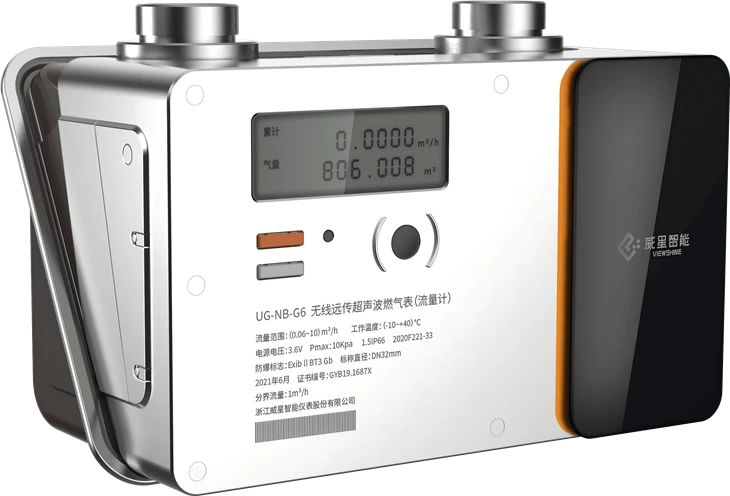

Commercial Gas Meter

Built for high gas consumption sites including industrial facilities, hotels and commercial office complexes, Viewshine large-capacity gas meters fit perfectly in locations with limited installation space. Adopting an all-static structure without any moving mechanical parts, the meter eliminates friction wear and mechanical fatigue entirely. This greatly cuts maintenance workload and long-run operating costs, while maintaining steady, drift-free metering accuracy after years of continuous service.

Main Features

1. Compact size and easy maintenance

2. Gas usage monitoring and dual channel layout

3. Full electronic measurement

4. Various intelligent applications

5. Muitiple communication modes

6. Accuracy remains unchanged for 10 years

7. Real-time temperature & pressurе compensation

8. Normal measurement when abnormal power supply

commercial water meter

Technical Parameters

Parameters		Unit	G6	G10
Maximum Flowrate (Q_max)		m³/h	10	16
Minimum Flowrate (Q_min)		m³/h	0.006	0.1
Start Flowrate (Q_start)		m³/h	0.008	0.013
MPE	Q_min≤Q<0.1 Q_max	%	±3.0
	0.1 Qmax≤Q≤Q_max		±1.5
Maximum Working Pressure (Pmax)		kPa	≤50
Maximum Pressure Absorption		Pa	≤250	≤375
Gas Temperature Range (tg)		℃	-25 to +55
Storage Temperature		℃	-30 to +60
Humidity		%	≤95
Battery Information		V	Main unit: 7.2 V lithium battery Measurement: 3.6 V lithium battery
Thread		Inch	G1¼"
Connection Centers		mm	150
Protection Rating		Class	IP65
Overall Dimensions		mm	270137173
Medium		/	NG
Mechanical Environment		Class	M1
Electronical Environment		Class	E2
Communication		/	GRPS/4G/NB-loT/Customized
Case Material		/	Steel

Dimension

Commercial Ultrasonic Gas Meter

Why Choose Us

1. Manufacturing Capability

We deploy advanced automated production lines and precision machining technologies to ensure consistent quality for every order, whether for standard products or customised models. This enables faster lead times, elevated production standards and reliable delivery timelines.

2. Global Certification Qualifications

Our metering range comes with a comprehensive set of international certifications, covering MID, ATEX, ISO 9001, ISO 14001, ISO 45001 and IPMS. These credentials are far more than paperwork. They reflect our persistent dedication to safety, product quality and environmental responsibility across our full product lineup.

3. Customized Solutions

We do not adopt a universal one-size-fits-all design approach. From private label branding to tailored communication protocols, we collaborate closely with partners to develop solutions matching your exact technical specifications and brand positioning.

4. Full-Cycle Quality Assurance

Our quality control system begins with raw material incoming inspection, continues with in-process production supervision and final functional testing. Backed by complete product traceability and rigorous inspection checkpoints, we guarantee stable and trustworthy performance of every meter during field operation.
