Overview

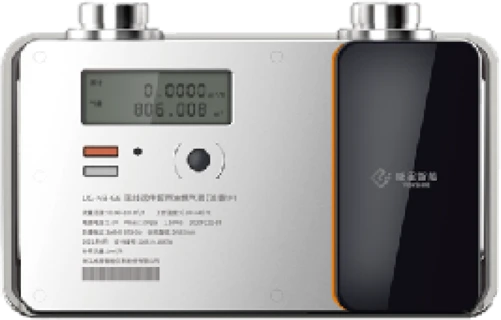

Viewshine's Commercial IoT Gas Meter is tailored for commercial and light industrial applications. Equipped with a dual-sensor measuring system and real-time temperature & pressure compensation, it maintains consistent metering precision throughout prolonged service cycles. Boasting a compact yet sturdy build, this meter fits limited installation spaces and performs reliably under tough on-site conditions. Supported by IoT connectivity and low maintenance requirements, it provides stable operation for factories, hotels and office buildings.
Main Features
1. Compact size
2. Easy maintenance
3. Gas usage monitoring
4. Dual channel layout
5. Full electronic measurement
6. Various intelligent applications
7. Muitiple communication modes
8. Accuracy remains unchanged for 10 years
9. Real-time temperature & pressurе compensation
10. Normal measurement when abnormal power supply
Technical Parameters
| Parameters | Unit | G16 | G25 | |
| Maximum Flowrate (Qmax) | m³/h | 25 | 40 | |
| Minimum Flowrate (Qmin) | m³/h | 0.16 | 0.25 | |
| Start Flowrate (Qstart) | m³/h | 0.013 | 0.020 | |
| MPE | Qmin≤Q<0.1Qmax | % | ±3.0 | |
| 0.1Qmax≤Q≤Qmax | ±1.5 | |||
| Maximum Working Pressure (Pmax) | kPa | ≤50 | ||
| Maximum Pressure Absorption | Pa | ≤375 | ||
| Gas Temperature Range (tg) | ℃ | -25 to +55 | ||
|
Ambient Temperature (tm) |
℃ | -30 to +60 | ||
| Humidity | % | ≤95 | ||
| Battery Information | V | Main unit: 7.2 V lithium battery Measurement: 3.6 V lithium battery |
||
| Thread | Inch | G1½" |
G2" |
|
| Connection Centers | mm | 180 | ||
| Protection Grade | Class | IP65 | ||
| Overall Dimensions | mm | 329*162*209 | ||
| Medium | mm | NG | ||
| Mechanical Environment | Class | M1 | ||
| Electronical Environment | Class | E2 | ||
| Communication | / | GRPS/4G/NB-loT/Customized | ||
| Case Material | / | Steel | ||
Dimension
